Alternador · AS PARTS · 12 V A3145

Catálogo Relmotor

Código A3145 Alternador · AS PARTS · 12 V

AS PARTS

Repuesto de nuestra línea de importación directa, disponible para consulta comercial y despacho nacional.

Consultar disponibilidad
Consultar disponibilidad Ingresar como cliente

El precio y el stock al día están disponibles para clientes con cuenta.

Ficha técnica

Según AS-PL (cuenta cliente)
Código A3145
Marca AS PARTS
Unidad de venta UN

Alternadores

Tensión [ V ] 12
Intensidad [ A ] 180
Tamaño A [ mm ] 32.00
Tamaño C [ mm ] 56.00
G [ qty. ] 6
O.D.1 [ mm ] 50.00
Polea AFP
D.1 [ mm ] 8.50
D.2 [ mm ] 8.50
D.3 [ mm ] 8.50
D.4 [ mm ] 8.50
E.1 [ mm ] 70.00
E.2 [ mm ] 70.00
L.1 [ mm ] 189.00
Conector PL_2306
COM ID 57

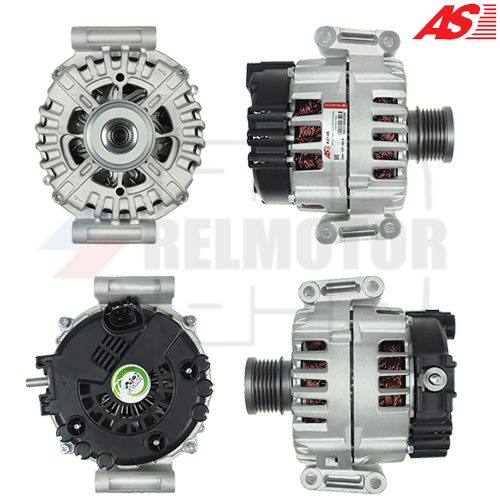

Medidas y denominaciones según AS-PL (cuenta cliente). Las letras corresponden al plano acotado que aparece entre las fotografías.

Compatibilidad

Aplicaciones

99 vehículos

MERCEDES-BENZ

  • GLK-CLASS (X204) 200 CDI (204.901) OM651.916 2010–2015
  • GLK-CLASS (X204) 200 CDI (204.901) OM651.913 2010–2015
  • GLK-CLASS (X204) 200 CDI (204.901) OM651.916 2013–2015
  • GLK-CLASS (X204) 220 CDI (204.902) OM651.916 2008–2015
  • GLK-CLASS (X204) 220 CDI 4-matic (204.984, 204.997) OM651.912 2008–2015
  • SLK (R172) 200 (172.448) M271.861 desde 2011
  • SLK (R172) 200 (172.448) M271.860 desde 2011
  • SLK (R172) 250 (172.447) M271.861 desde 2011
  • SLK (R172) 250 (172.447) M271.860 desde 2011
  • SLK (R172) 250 CDI / d (172.403) OM651.980 desde 2012
  • SPRINTER 3-t Bus (B906) 210 CDI (906.711, 906.713) OM651.956 2009–2016
  • SPRINTER 3-t Bus (B906) 210 CDI (906.711, 906.713) OM651.955 2009–2016
  • SPRINTER 3-t Bus (B906) 211 CDI (906.711, 906.713) OM646.985 2006–2009
  • SPRINTER 3-t Bus (B906) 211 CDI (906.711, 906.713) OM651.956 2016–2018
  • SPRINTER 3-t Bus (B906) 211 CDI (906.711, 906.713) OM651.955 2016–2018
  • SPRINTER 3-t Bus (B906) 213 CDI (906.711, 906.713) OM651.957 2006–2016
  • SPRINTER 3-t Bus (B906) 213 CDI (906.711, 906.713) OM651.955 2006–2016
  • SPRINTER 3-t Bus (B906) 213 CDI (906.711, 906.713) OM651.956 2006–2016
  • SPRINTER 3-t Bus (B906) 214 CDI (906.711, 906.713) OM651.955 2016–2018
  • SPRINTER 3-t Bus (B906) 214 CDI (906.711, 906.713) OM651.956 2016–2018
  • SPRINTER 3-t Bus (B906) 215 CDI (906.711, 906.713) OM646.990 2006–2009
  • SPRINTER 3-t Bus (B906) 215 CDI (906.711, 906.713) OM646.989 2006–2009
  • SPRINTER 3-t Bus (B906) 215 CDI (906.711, 906.713) OM646.986 2006–2009
  • SPRINTER 3-t Bus (B906) 216 CDI (906.711, 906.713) OM651.957 2009–2018
  • SPRINTER 3-t Bus (B906) 216 CDI (906.711, 906.713) OM651.955 2009–2018
  • SPRINTER 3-t Bus (B906) 216 CDI (906.711, 906.713) OM651.956 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 209 CDI (906.111, 906.113, 906.211, 906.213) OM646.984 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 210 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 210 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 211 CDI (906.111, 906.113, 906.211, 906.213) OM646.985 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 211 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2016–2018
  • SPRINTER 3-t Platform/Chassis (B906) 211 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2016–2018
  • SPRINTER 3-t Platform/Chassis (B906) 213 CDI (906.111, 906.113, 906.211, 906.213) OM646.986 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 213 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 213 CDI (906.111, 906.113, 906.211, 906.213) OM651.957 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 213 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 214 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2016–2018
  • SPRINTER 3-t Platform/Chassis (B906) 214 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2016–2018
  • SPRINTER 3-t Platform/Chassis (B906) 215 CDI (906.111, 906.113, 906.211, 906.213) OM646.986 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 215 CDI (906.111, 906.113, 906.211, 906.213) OM646.989 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 215 CDI (906.111, 906.113, 906.211, 906.213) OM646.990 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 216 (906.113, 906.213) M271.951 2008–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 CDI (906.111, 906.113, 906.211, 906.213) OM651.957 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 218 CDI (906.111, 906.113, 906.211, 906.213) OM642.993 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 218 CDI (906.111, 906.113, 906.211, 906.213) OM642.896 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 218 CDI (906.111, 906.113, 906.211, 906.213) OM642.992 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 219 CDI / BlueTEC (906.111, 906.113, 906.211, 906.213) OM642.992 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 219 CDI / BlueTEC (906.111, 906.113, 906.211, 906.213) OM642.896 2009–2018
  • SPRINTER 3-t Van (B906) 209 CDI (906.611, 906.613) OM646.984 2006–2009
  • SPRINTER 3-t Van (B906) 210 CDI (906.611, 906.613) OM651.956 2009–2016
  • SPRINTER 3-t Van (B906) 210 CDI (906.611, 906.613) OM651.955 2009–2016
  • SPRINTER 3-t Van (B906) 211 CDI (906.611, 906.613) OM646.985 2006–2009
  • SPRINTER 3-t Van (B906) 211 CDI (906.611, 906.613) OM651.956 2016–2018
  • SPRINTER 3-t Van (B906) 211 CDI (906.611, 906.613) OM651.955 2016–2018
  • SPRINTER 3-t Van (B906) 213 CDI (906.611, 906.613) OM646.986 2006–2009
  • SPRINTER 3-t Van (B906) 213 CDI (906.611, 906.613) OM651.955 2006–2016
  • SPRINTER 3-t Van (B906) 213 CDI (906.611, 906.613) OM651.956 2006–2016
  • SPRINTER 3-t Van (B906) 213 CDI (906.611, 906.613) OM651.957 2006–2016

Y 39 aplicaciones más. Ingresa como cliente para ver la lista completa.

Referencia cruzada

Números originales y equivalencias

182 códigos

Los OEM son los números originales del fabricante del vehículo o del equipo. Las otras referencias son códigos de distintas marcas para la misma pieza.

Otras referencias técnicas
MarcaCódigos
3EFFE
  • ALTE626
  • ALTF181
  • ALTL632
  • PRAE626
  • PRAF181
  • PRAL632
ACAUTO
  • ACCBA2072
AINDE
  • CGB10568
AIRSTAL
  • 200163
ALANKO
  • 10443488
  • 11443488
ANDEL
  • ANM32788
APEC
  • AAL1271
AS-PL
  • A3145
  • A3145(VALEO)
  • A3145PR
  • A3277
  • UD14862A
ATL AUTOTECHNIK
  • L81550
AUGER
  • 114038
AUTOELECTRO
  • AEK3408
AUTOTEAM
  • AVA470
BAPMIC
  • BF0427770286
BORG & BECK
  • BBA3065
BOSCH
  • 0986082500
  • 0986084590
  • 0986CR6404
  • 0986UR6404
BTS TURBO
  • G104292
  • G104293
  • G104294
CARGO
  • 114876
  • 115676
  • F032114876
  • F032115676
CARWOOD GROUP
  • BREF0320986084590
  • BREF032115676
CASCO
  • CAL15470AS
  • CAL15470GS
  • CAL15540GS
CEVAM
  • 4832
DA SILVA
  • 012027
DELCO
  • DRA0568
DIXIE
  • A9589
DT SPARE PARTS
  • 400403
EAI
  • 57340
ELECTROLOG
  • ALT00005
  • ALT00025
  • ALT00034
ELSTOCK
  • 286520
ERA
  • 209184
  • 209190
  • 210897
EUROTEC
  • 12090360
FARCOM
  • 113898
FAST
  • FT74054
HC PARTS
  • CA2072IR
HENKEL PARTS
  • 3121007
  • 3127866
HERTH+BUSS
  • 32082500
IAP QUALITY PARTS
  • 80254012
IKA
  • 632029
ITAB AUTOMOTIVE
  • 20015470AV
  • 20015470OV
JAPANPARTS
  • AL212JM
KRAUF
  • ALV6105
  • ALV6105DD
KUHNER
  • 553695RI
  • 553695RIV
  • 553993RI
  • 553993RIV
LE PART
  • LEA1045
LOGISTIK
  • 442331
  • 442607
LUCAS
  • LRA03408
  • LRA3408
MAXGEAR
  • 550540
MEAT & DORIA
  • 5515345
MERCEDES
  • 0009063622
  • 0009068802
  • 000906880280
  • 0131546802
  • 01315468020
  • 01315468020080
  • 013154680280
  • 2251981802
  • 906880280
  • A0009063622
  • A00090636220080
  • A0009068802
  • A000906880280
  • A0009093622
  • A0131546802
  • A01315468020080
  • A0131546802080
  • A2251981802
MOBILETRON
  • ALVA004
MTR
  • 12117022
NAPA
  • NPANAL1271
NK
  • 4833001
POWERMAX
  • 89215227
PRESTOLITE
  • A2027V
PSH
  • 555590180000
  • 555590180004
  • 555590180008
  • 555590180280
  • 555590180340
  • 555590180500
  • 555590180505
  • 555921180000
  • 555921180004
  • 555921180340
  • 555921180346
  • 555921180440
  • 555921180500
  • A133577
  • A133842
  • A146864
  • A149976
QUINTON HAZELL
  • QRA3300
REAL
  • 20179045OE
  • 20179074BN
  • 20179074OE
RIDEX
  • 4G1699
RNL
  • FGN18S130RR
  • RNLFG18S012
  • RNLFGN18S130
ROLLCO
  • ALT2250CP
SAMPA
  • 0103133
SANDO
  • 20154700
  • 20154701
  • 20155401
SEG AUTOMOTIVE
  • T000A10006
SIDAT
  • A12VA0048
  • A12VA0048A2
  • A12VA0048AS
SIOM
  • ALT174700
  • ALT174700A
  • ALT175400
SNRA
  • ME8083
STARDAX
  • STX101305
  • STX101305R
  • STX101681
  • STX101681R
  • STX102149
STARTCAR
  • 340ST75
TESLA TECHNICS
  • TT12760
  • TT12760PRO
THE NEWLINE
  • RE73827N
TMI
  • AL03037
VALEO
  • 200230
  • 2543406
  • 2543406A
  • 2618301
  • 2618301A
  • 439653
  • 439772
  • 439836
  • 440238
  • 440405
  • 440561
  • 444707
  • 444708
  • 618301
  • 747114
  • FG18S012
  • FG18S098
  • FG18S130
  • FGN18S012
  • FGN18S098
  • FGN18S130
VEMO
  • V301350006
WAI / TRANSPO
  • 22721N
WALKER
  • WAL00004
WILMINK GROUP
  • WG2281214
  • WG2471651
  • WG2473437
WOODAUTO
  • ALT14466
  • ALT14622
  • VAL439836
  • VALFG18S130
  • WOOALT14622
