Catálogo Relmotor
Código A9383S

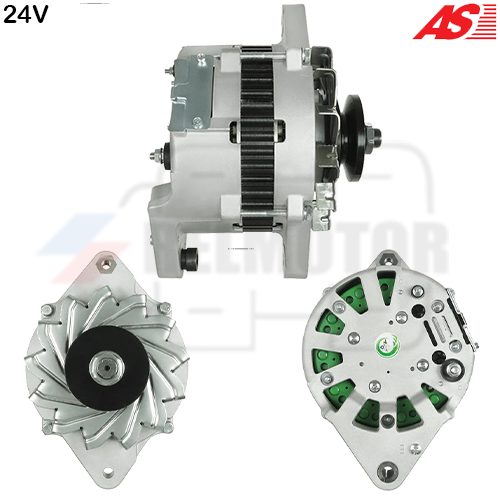

ALTERNADOR · AS PARTS
AS PARTS
Repuesto de nuestra línea de importación directa, disponible para consulta comercial y despacho nacional.
Disponible
Los precios y las referencias cruzadas están disponibles para clientes con cuenta.
Ficha técnica
| Código | A9383S |
|---|---|
| Marca | AS PARTS |
| Unidad de venta | UN |
Alternadores
| Tensión [ V ] | 24 |
|---|---|
| Intensidad [ A ] | 90 |
| Tamaño A [ mm ] | 65.00 |
| Tamaño B [ mm ] | 25.00 |
| Tamaño C [ mm ] | 108.00 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 57.00 |
| O.D.2 [ mm ] | 94.00 |
| W.1 [ mm ] | 16.00 |
| Polea | AP |
| D.1 [ mm ] | M12x1.5 |
| D.2 [ mm ] | 13.00 |
| D.3 [ mm ] | 12.50 |
| L.1 [ mm ] | 240.00 |
| Conector | PL_9104 |
Medidas y denominaciones según AS-PL (cuenta cliente). Las letras corresponden al plano acotado que aparece entre las fotografías.
Compatibilidad
100 vehículos
Aplicaciones
KOMATSU
- D155AX-7 15.2 SAA6D140E 2012–2020
- D155AX-8 15.2 SAA6D140E 2014–2020
- D155AXi-8 15.2 SAA6D140E 2015–2020
- D375A-5 23.15 SAA6D170E 2001–2018
- D375A-5 23.15 SA6D170E 2001–2018
- D375A-5D 23.15 SA6D170E 2001–2018
- D375A-5E0 23.15 SAA6D170E 2005–2019
- D375A-6 23.15 SAA6D170E 2010–2020
- D475A-3 30.48 SDA12V140 1999–2008
- D475A-5 30.48 SDA12V140E 2004–2008
- D475A-5A 30.48 SDA12V140E 2004–2008
- D475A-5E0 30.48 SAA12V140E 2007–2020
- D475ASD-5E0 30.48 SAA12V140E 2007–2020
- D61EX-23 6.7 SAA6D107E 2012–2020
- D61EX-24 4.5 SAA4D107E 2015–2020
- D61EX-24 6.7 SAA6D107E 2015–2020
- D61EXi-24 4.5 SAA4D107E 2016–2020
- D61EXi-24 6.7 SAA6D107E 2016–2020
- D61PX-24 4.5 SAA4D107E 2015–2020
- D61PXi-24 4.5 SAA4D107E 2016–2020
- D85EX-15E0 11.0 SAA6D125E 2006–2020
- D85EX-18 11.0 SA6D125E 2015–2020
- D85EXi-18 11.0 SA6D125E 2016–2020
- D85PX-15E0 11.0 SAA6D125E 2006–2020
- D85PX-18 11.0 SAA6D125E 2015–2020
- D85PXi-18 11.0 SAA6D125E 2016–2020
- HB215C-3 4.5 SAA4D107E 2018–2020
- HD325-8 15.2 SAA6D140E 2016–2021
- HD325-8E0 15.2 SAA6D140E 2016–2021
- HD405-8 15.2 SAA6D140E 2016–2020
- HD465-7E0 23.15 SAA6D170E 2006–2018
- HD465-8 23.15 SAA6D170E 2017–2021
- HD605-7E0 23.15 SAA6D170E 2006–2018
- HD605-8 23.15 SAA6D170E 2017–2021
- HD785-3 30.48 SA12V140 1988–1998
- HD785-5 SA12V140 1996–2006
- HD785-5 30.48 SA12V140 1999–2007
- HD785-7 30.48 SAA12V140E 2007–2020
- HM300-3 11.0 SAA6D125E 2012–2014
- HM300-5 11.0 SAA6D125E 2015–2021
- HM400-3 15.2 SAA6D140E 2012–2015
- HM400-5 15.2 SAA6D140E 2015–2021
- PC1100-6 23.1 SAA6D170E 1998–2002
- PC1100C-6 23.1 SAA6D170E 1998–2002
- PC1100SP-6 23.1 SAA6D170E 1998–2002
- PC1250-11 23.1 SAA6D170E 2018–2020
- PC1250-7 23.1 SAA6D170E 2002–2006
- PC1250-8 23.1 SAA6D170E 2006–2020
- PC1250C-11 23.1 SAA6D170E 2018–2020
- PC1250C-7 23.1 SAA6D170E 2002–2006
- PC1250C-8 23.1 SAA6D170E 2006–2020
- PC1250SP-11 23.1 SAA6D170E 2018–2020
- PC1250SP-7 23.1 SAA6D170E 2002–2006
- PC1250SP-8 23.1 SAA6D170E 2006–2020
- PC2000-11 30.48 SAA12V140E 2019–2020
- PC2000-8 30.48 SAA12V140E 2007–2020
- PC210-11 6.7 6D107E 2015–2021
- PC210C-11 6.7 6D107E 2015–2021
- PC210Ci-11 6.7 SAA6D107E 2017–2021
- PC240C-11 6.7 6D107E 2015–2021
Y 40 aplicaciones más. Ingresa como cliente para ver la lista completa.
