Código A9287S
ALTERNADOR · AS PARTS
AS PARTS
Repuesto de nuestra línea de importación directa, disponible para consulta comercial y despacho nacional.
10 disponibles
Los precios y las referencias cruzadas están disponibles para clientes con cuenta.
Ficha técnica
| Código | A9287S |
|---|---|
| Marca | AS PARTS |
| Unidad de venta | UN |
Alternadores
| Tensión [ V ] | 12 |
|---|---|
| Intensidad [ A ] | 20 |
| Tamaño A [ mm ] | 65.00 |
| Tamaño B [ mm ] | 16.00 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 36.50 |
| O.D.2 [ mm ] | 65.00 |
| W.1 [ mm ] | 11.00 |
| Polea | AP |
| D.1 [ mm ] | 8.50 |
| D.2 [ mm ] | M8x1.25 |
| L.1 [ mm ] | 82.00 |
| Conector | PL_N/A |

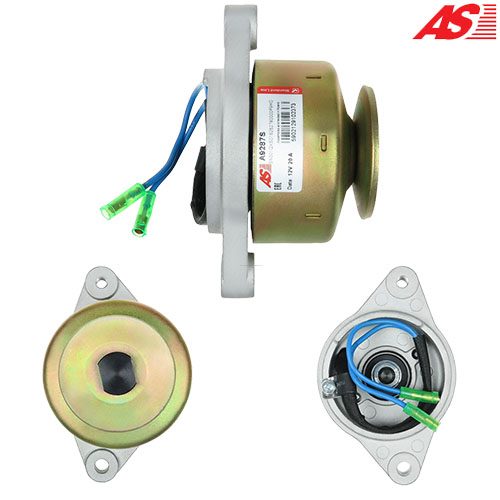

Medidas y denominaciones según AS-PL (cuenta cliente). Las letras corresponden al plano acotado que aparece entre las fotografías.
Compatibilidad
100 vehículos
Aplicaciones
ISEKI
- SG153H 0.6 E262-6 2005–2007
- SG173H 0.7 E374-G 2005–2007
- TM3160 0.9 E393B 2004–2014
KUBOTA
- B1550D D850-5B 1988–1996
- B1550E D850-5B 1988–1996
- B1700D D9005-D10 1995–1999
- B1700DT D905-D10 1995–1998
- B1700E D905-D10 1995–1998
- B1700HSDB D905-D10 1995–1998
- B1700HSE D905-D10 1995–1999
- B170HSD D905-D10 1995–1998
- B20 D950-A-T 1990–1998
- B20TL D950-A-T 1990–1998
- B2100D D1005-D10 1995–1999
- B2100DT D1005-D10 1995–1998
- B2100E D1005-D10 1995–1999
- B2100HSD D1005-D10 1995–1998
- B2100HSDB D1005-D10 1995–1998
- B2100HSE D1005-D10 1995–1999
- B2320DT D1105-E3-D22 2008
- B2320DTN D1105-E3-D22 2008
- B2320DWO D1105-E3-D22 2008
- B2320HSD D1105-E3-D22 2008
- B2400D D1105-D10 1995–1999
- B2400E D1105-D10 1995–1999
- B2400HSE D1105-D10 1995–1999
- B2400HST-DB D1105-D10 1995–1998
- B2400HST-E D1105-D10 1995–1998
- B2410HSD D1105 2000–2005
- B2410HSDB D1105-D10 1995–1998
- B2410HSE D1105-D10 1995–1998
- B2620HSD D1105-E3-D22 2008
- B2630HSD D1105-E2 2009
- B2710HSD V1305 1996–2003
- B2910HSD V1305 1996–2003
- B2920HSD D1305-E3-D22 2008
- B3030HSD V1505-E2 2009
- B3030HSDC V1505-E2 2009
- B5200DT D750 1983–1996
- B5200E D750 1983–1995
- B6200DT D850-5B 1983–1994
- B6200E D850-5B 1983–1994
- B6200HSD D850-5B 1983–1994
- B6200HSDT D850-5B 1983–1994
- B6200HSE D850-5B 1983–1994
- B6200HST D850-5B 1983–1994
- B6200T D850-5B 1983–1994
- B7300HSD D722-D10 1997–1998
- B7400HSD D722-D10 1997–1998
- B741 ODT-R D782-E 1993–2005
- B7410DT-F D782-E 1993–2005
- B7500D D1005-E-D16 2000–2003
- B7500DT D1005-E 1996–2003
- B7500DTN D1005-E-D16 2000–2003
- B7500HSD D1005-E-D16 2000–2003
- B7510D D1005-E2-D16 2004–2007
- B7510DN D1005-E2-D16 2004–2007
- B7510HSD D1005-E2-D16 2004–2007
- B7610HSD D1005-E-D16 2004–2007
- B7800HSD D1505-E-D16 2003–2008
Y 40 aplicaciones más. Ingresa como cliente para ver la lista completa.
