Catálogo Relmotor
Código A9215

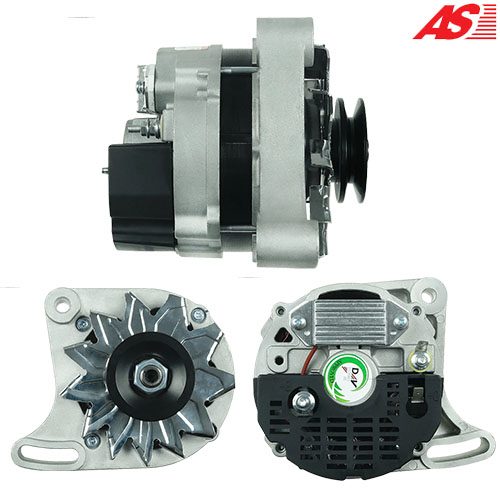

ALTERNADOR · AS PARTS
AS PARTS
Repuesto de nuestra línea de importación directa, disponible para consulta comercial y despacho nacional.
6 disponibles
Los precios y las referencias cruzadas están disponibles para clientes con cuenta.
Ficha técnica
| Código | A9215 |
|---|---|
| Marca | AS PARTS |
| Unidad de venta | UN |
Alternadores
| Tensión [ V ] | 12 |
|---|---|
| Intensidad [ A ] | 45 |
| Tamaño A [ mm ] | 57.50 |
| Tamaño B [ mm ] | 32.00 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 41.00 |
| O.D.2 [ mm ] | 65.00 |
| W.1 [ mm ] | 10.00 |
| Polea | AP |
| D.1 [ mm ] | 10.50 |
| D.2 [ mm ] | 11.50 |
| L.1 [ mm ] | 168.00 |
| Conector | PL_9105 |
Medidas y denominaciones según AS-PL (cuenta cliente). Las letras corresponden al plano acotado que aparece entre las fotografías.
Compatibilidad
52 vehículos
Aplicaciones
AGCO
- Various Models desde 2014
AGROMEHANIKA
- AGT 835 1.6 LDW1603B1
- AGT 835 TS 1.6 LDW1603B1
- AGT 850 KDI2504H
AUTOBIANCHI
- Y10 1.0 4WD 156A3.000 1986–1995
- Y10 1.0 Cat 156A2.246 1987–1995
FIAT
- CINQUECENTO VAN (170_) 1.1 iE (170AH) 176B2.000 1994–1998
- PANDA (141_) 1000 156A2.100 1986–1992
- PANDA (141_) 1000 4x4 156A3.100 1986–1989
- PANDA (141_) 1000 4x4 156A3.000 1986–1992
- PANDA (141_) 1000 4x4 156A2.246 1986–1994
- PANDA (141_) 1000 4x4 156A2.100 1986–1989
- PANDA (141_) 1000 4x4 141C2.000 1986–1994
- PANDA (141_) 1100 176B2.000 1995–2003
- PANDA (141_) 1100 187A1.000 1995–2003
- PANDA (141_) 750 156A4.000 1986–2003
- PANDA (141_) 750 156A4.048 1986–2003
- PANDA Hatchback Van (141_) 1000 156A3.100 1986–1992
- PANDA Hatchback Van (141_) 1000 156A2.100 1986–1992
- PANDA Hatchback Van (141_) 1000 i.e 141C2.000 1992–2004
- PANDA Hatchback Van (141_) 1000 i.e 156A2.246 1992–2004
- TIPO (160_) 1.1 (160.AA) 160A3.000 1988–1991
- UNO (146_, 158_) 45 1.0 (146A.ED) 156A2.048 1986–1993
- UNO (146_, 158_) 45 1.0 (146A.ED) 156A2.100 1986–1993
GOLDONI
- 45 SN LDW1603
- 45 SN 1.7 LDW1603
HITTNER
- 30 9LD625-2
- 35 LDW1603
- 40 LDW1603
IMER GROUP
- 190 DB 1.6 LDW1603
LANCIA
- Y10 (156_) 1.0 Fire (156AA) 156A2.000 1985–1989
- Y10 (156_) 1.0 Fire (156AA) 156A2.246 1985–1989
- Y10 (156_) 1.0 Fire (156B, 156AD) 156A2.100 1985–1991
- Y10 (156_) 1.0 Fire All-wheel Drive (156.AD) 156A2.100 1986–1989
- Y10 (156_) 1.0 Fire Catalytic-Conv (156AE) 156A2.246 1987–1992
- Y10 (156_) 1.1 Fire (156AG) 176B2.000 1995
- Y10 (156_) 1.1 Fire All-wheel Drive (156AG) 176B2.000 1995
- Y10 (156_) 1.1 i.e. Fire All-wheel Drive (156AG) 156C.046 1992–1995
LOMBARDINI
- Engine LDW1503
- Engine LDW2004
- Engine LDW502
- Engine LDW602
- Engine 0.9 LDW903
- Engine 1.2 LDW1204
- Engine 1.2 LDW1404
- Engine 1.7 LDW1603M
- Engine 1.7 LDW1603SD
- Engine 1.7 LDW1603
- LDW 502
- LDW 602
STEINER
- 440-34 KO 1.0 CH904
- 440-40 KO 1.0 CH1000
