Catálogo Relmotor
Código A3606S

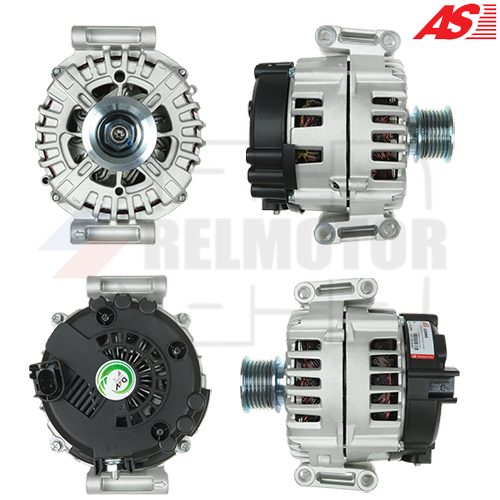

ALTERNADOR · AS PARTS
AS PARTS
Repuesto de nuestra línea de importación directa, disponible para consulta comercial y despacho nacional.
Consultar disponibilidad
Los precios y las referencias cruzadas están disponibles para clientes con cuenta.
Ficha técnica
| Código | A3606S |
|---|---|
| Marca | AS PARTS |
| Unidad de venta | UN |
Alternadores
| Tensión [ V ] | 12 |
|---|---|
| Intensidad [ A ] | 250 |
| Tamaño A [ mm ] | 31.00 |
| Tamaño C [ mm ] | 56.00 |
| G [ qty. ] | 7 |
| O.D.1 [ mm ] | 50.00 |
| Polea | AP |
| D.1 [ mm ] | 9.00 |
| D.2 [ mm ] | 9.00 |
| D.3 [ mm ] | 8.00 |
| D.4 [ mm ] | 8.00 |
| E.1 [ mm ] | 70.00 |
| E.2 [ mm ] | 70.00 |
| L.1 [ mm ] | 186.00 |
| Conector | PL_2306 |
| COM ID | 89 |
Medidas y denominaciones según AS-PL (cuenta cliente). Las letras corresponden al plano acotado que aparece entre las fotografías.
Compatibilidad
13 vehículos
Aplicaciones
MERCEDES-BENZ
- E-CLASS (W213) E 350 d (213.033) OM642.855 2016–2018
- E-CLASS (W213) E 350 d 4-matic (213.034) OM642.873 2017–2018
- E-CLASS All-Terrain (S213) E 350 d 4-matic (213.237) OM642.873 2017–2018
- E-CLASS T-Model (S213) E 350 d (213.233) OM642.855 2016–2018
- E-CLASS T-Model (S213) E 350 d 4-matic (213.234) OM642.873 2017–2018
- GL-CLASS (X166) GL 350 CDI / BlueTec 4-matic (166.823, 166.824) OM642.826 2012–2015
- GL-CLASS (X166) GL 350 CDI / BlueTEC 4-matic (166.824) OM642.826 2012–2015
- GLE (W166) 350 d 4-matic (166.024) OM642.826 2015–2018
- GLE Coupe (C292) 350 d 4-matic (292.323, 292.324) OM642.824 2015–2019
- GLE Coupe (C292) 350 d 4-matic (292.323, 292.324) OM642.826 2015–2019
- GLS (X166) 350 d 4-matic (166.824) OM642.826 2015–2019
- M-CLASS (W166) ML 350 BlueTEC 4-matic (166.024, 166.023) OM642.826 2011–2015
- M-CLASS (W166) ML 350 BlueTEC 4-matic (166.024, 166.023) OM642.864 2011–2015
