Alternador · AS PARTS · 12 V A3437S

Catálogo Relmotor

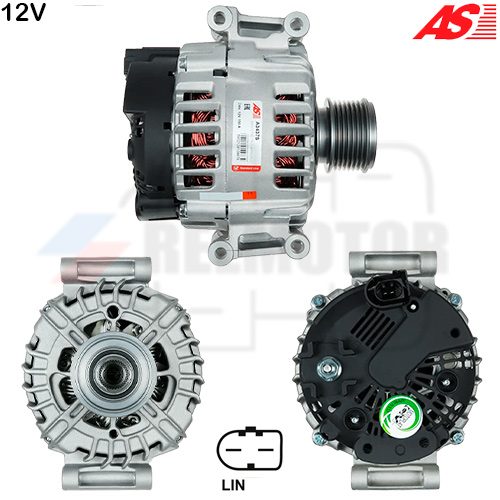

Código A3437S Alternador · AS PARTS · 12 V

AS PARTS

Repuesto de nuestra línea de importación directa, disponible para consulta comercial y despacho nacional.

Consultar disponibilidad
Consultar disponibilidad Ingresar como cliente

El precio y el stock al día están disponibles para clientes con cuenta.

Ficha técnica

Según AS-PL (cuenta cliente)
Código A3437S
Marca AS PARTS
Unidad de venta UN

Alternadores

Tensión [ V ] 12
Intensidad [ A ] 150
Tamaño A [ mm ] 33.00
Tamaño C [ mm ] 56.00
G [ qty. ] 7
O.D.1 [ mm ] 56.00
Polea AFP
D.1 [ mm ] 9.00
D.2 [ mm ] 9.00
D.3 [ mm ] 9.00
D.4 [ mm ] 9.00
E.1 [ mm ] 70.00
E.2 [ mm ] 70.00
L.1 [ mm ] 203.00
Conector PL_2306
COM ID 25

Medidas y denominaciones según AS-PL (cuenta cliente). Las letras corresponden al plano acotado que aparece entre las fotografías.

Compatibilidad

Aplicaciones

80 vehículos

MERCEDES-BENZ

  • C-CLASS (W204) C 180 CGI (204.049) M271.820 2007–2014
  • C-CLASS (W204) C 180 Kompressor (204.044, 204.045) M271.910 2008–2014
  • C-CLASS (W204) C 180 Kompressor (204.046) M271.952 2007–2014
  • C-CLASS (W204) C 200 CGI (204.048) M271.860 2007–2014
  • C-CLASS (W204) C 200 CGI (204.048) M271.820 2007–2014
  • C-CLASS (W204) C 200 Kompressor (204.041) M271.950 2007–2014
  • C-CLASS (W204) C 250 CGI (204.047) M271.860 2009–2014
  • C-CLASS Coupe (C204) C 200 CGI (204.348) M271.860 desde 2011
  • C-CLASS T-Model (S204) C 180 CGI (204.249) M271.820 2009–2014
  • C-CLASS T-Model (S204) C 180 Kompressor (204.245) M271.910 2008–2014
  • C-CLASS T-Model (S204) C 180 Kompressor (204.246) M271.952 2007–2014
  • C-CLASS T-Model (S204) C 200 CGI (204.248) M271.820 2007–2014
  • C-CLASS T-Model (S204) C 200 CGI (204.248) M271.860 2007–2014
  • C-CLASS T-Model (S204) C 200 Kompressor (204.241) M271.950 2007–2014
  • C-CLASS T-Model (S204) C 250 CGI (204.247) M271.860 2009–2014
  • E-CLASS (W211) E 200 Kompressor (211.041) M271.956 2006–2008
  • E-CLASS (W211) E 200 Kompressor (211.042) M271.941 2002–2008
  • E-CLASS (W211) E 200 NGT (211.042) M271.941 2004–2008
  • E-CLASS (W212) E 200 CGI (212.048, 212.148) M271.820 2009–2015
  • E-CLASS (W212) E 200 CGI (212.048, 212.148) M271.860 2009–2015
  • E-CLASS (W212) E 200 NGT (212.041) M271.958 2011–2015
  • E-CLASS (W212) E 250 CGI (212.047, 212.147) M271.860 2009–2015
  • E-CLASS T-Model (S211) E 200 Kompressor (211.241) M271.956 2006–2009
  • E-CLASS T-Model (S211) E 200 T Kompressor (211.242) M271.941 2003–2009
  • E-CLASS T-Model (S212) E 200 CGI (212.248) M271.860 2009–2016
  • E-CLASS T-Model (S212) E 250 CGI (212.247) M271.860 2009–2013
  • SPRINTER 3-t Bus (B906) 216 (906.713) M271.951 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 (906.113, 906.213) M271.951 2008–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 CDI (906.111, 906.113, 906.211, 906.213) OM651.957 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2009–2018
  • SPRINTER 3-t Van (B906) 216 (906.613) M271.951 2008–2018
  • SPRINTER 3,5-t Bus (B906) 316 (906.733, 906.735) M271.951 2008–2018
  • SPRINTER 3,5-t Bus (B906) 316 CDI (906.731, 906.733, 906.735) OM651.955 2011–2018
  • SPRINTER 3,5-t Bus (B906) 316 CDI (906.731, 906.733, 906.735) OM651.956 2011–2018
  • SPRINTER 3,5-t Bus (B906) 316 CDI (906.731, 906.733, 906.735) OM651.957 2011–2018
  • SPRINTER 3,5-t Bus (B906) 316 CDI 4x4 (906.731, 906.733, 906.735) OM651.957 2011–2018
  • SPRINTER 3,5-t Bus (B906) 316 CDI 4x4 (906.731, 906.733, 906.735) OM651.956 2011–2018
  • SPRINTER 3,5-t Bus (B906) 316 CDI 4x4 (906.731, 906.733, 906.735) OM651.955 2011–2018
  • SPRINTER 3,5-t Bus (B906) 316 LGT M271.951 2008–2018
  • SPRINTER 3,5-t Bus (B906) 316 NGT (906.733) M271.951 2009–2018
  • SPRINTER 3,5-t Platform/Chassis (B906) 316 (906.133, 906.135, 906.233, 906.235) M271.951 2008–2018
  • SPRINTER 3,5-t Platform/Chassis (B906) 316 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... OM651.955 2009–2018
  • SPRINTER 3,5-t Platform/Chassis (B906) 316 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... OM651.956 2009–2018
  • SPRINTER 3,5-t Platform/Chassis (B906) 316 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... OM651.957 2009–2018
  • SPRINTER 3,5-t Platform/Chassis (B906) 316 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... OM651.955 2009–2018
  • SPRINTER 3,5-t Platform/Chassis (B906) 316 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... OM651.957 2009–2018
  • SPRINTER 3,5-t Platform/Chassis (B906) 316 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... OM651.956 2009–2018
  • SPRINTER 3,5-t Platform/Chassis (B906) 316 LGT (906.133, 906.135, 906.233, 906.235) M271.951 2011–2018
  • SPRINTER 3,5-t Platform/Chassis (B906) 316 NGT (906.133, 906.135, 906.233, 906.235) M271.951 2008–2018
  • SPRINTER 3,5-t Van (B906) 316 (906.635, 906.633) M271.951 2008–2018
  • SPRINTER 3,5-t Van (B906) 316 CDI (906.631, 906.633, 906.635, 906.637) OM651.957 2009–2018
  • SPRINTER 3,5-t Van (B906) 316 CDI (906.631, 906.633, 906.635, 906.637) OM651.956 2009–2018
  • SPRINTER 3,5-t Van (B906) 316 CDI (906.631, 906.633, 906.635, 906.637) OM651.955 2009–2018
  • SPRINTER 3,5-t Van (B906) 316 CDI 4x4 (906.631, 906.633, 906.635, 906.637) OM651.955 2009–2018
  • SPRINTER 3,5-t Van (B906) 316 CDI 4x4 (906.631, 906.633, 906.635, 906.637) OM651.956 2009–2018
  • SPRINTER 3,5-t Van (B906) 316 CDI 4x4 (906.631, 906.633, 906.635, 906.637) OM651.957 2009–2018
  • SPRINTER 3,5-t Van (B906) 316 LGT (906.633, 906.635) M271.951 2011–2018
  • SPRINTER 3,5-t Van (B906) 316 NGT (906.633, 906.635) M271.951 2008–2018
  • SPRINTER 4,6-t Van (B906) 416 CDI (906.653, 906.655, 906.657, 906.633, 906.635,... OM651.955 2009–2018

Y 20 aplicaciones más. Ingresa como cliente para ver la lista completa.

Referencia cruzada

Números originales y equivalencias

56 códigos

Los OEM son los números originales del fabricante del vehículo o del equipo. Las otras referencias son códigos de distintas marcas para la misma pieza.

Otras referencias técnicas
MarcaCódigos
3EFFE
  • ALTL603
ANDEL
  • ANM32852X
AS-PL
  • A3544S
  • UD20734A
BOSCH
  • 0124615022
  • 0124615028
  • 0124615068
  • 0986046300
CARGO
  • 116490
  • F032116490
CASCO
  • CAL15473GS
CEVAM
  • 4821
DELCO
  • DRA0632
EAI
  • 57766
ELECTROLOG
  • ALT00180
ELSTOCK
  • 286564
ERA
  • 209086
  • 210965
HELLA
  • 8EL012240201
KRAUF
  • ALV8075
LOGISTIK
  • 441999
LUCAS
  • LRA03454
  • LRA3454
MEAT & DORIA
  • 55151227
MERCEDES
  • 0121540602
  • 2711540602
  • 2711541002
  • 271154100280
  • 2711541502
  • 27115415020080
  • A0121540602
  • A2711540602
  • A2711541002
  • A271154100280
  • A2711541502
  • A27115415020080
  • A2711541802
POWERMAX
  • 89215590
PSH
  • 555559150
  • 555559150346
  • A133958
  • A147564
  • A149863
REAL
  • 20179374OE
SANDO
  • 20154731
SIDAT
  • A12BH0945AS
  • A12VA0944AS
STARDAX
  • STX100420
  • STX100420R
  • STX102174
VALEO
  • 439610
  • 440127
  • TG15C075
WAI / TRANSPO
  • 23285R
  • 24102N
WOODAUTO
  • ALT10414
