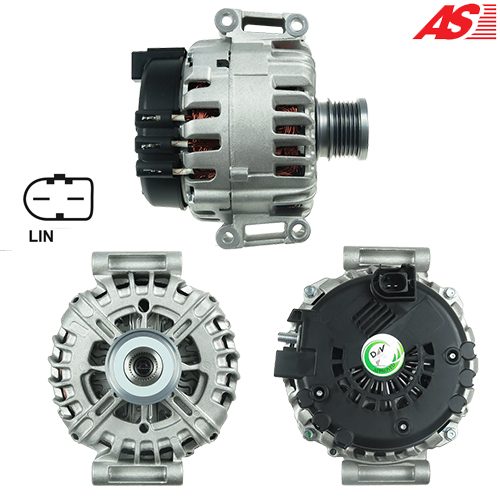

Alternador · AS PARTS · 12 V A3277

Catálogo Relmotor

Código A3277 Alternador · AS PARTS · 12 V

AS PARTS

Repuesto de nuestra línea de importación directa, disponible para consulta comercial y despacho nacional.

Consultar disponibilidad
Consultar disponibilidad Ingresar como cliente

El precio y el stock al día están disponibles para clientes con cuenta.

Ficha técnica

Según AS-PL (cuenta cliente)
Código A3277
Marca AS PARTS
Unidad de venta UN

Alternadores

Tensión [ V ] 12
Intensidad [ A ] 220
Tamaño A [ mm ] 32.00
Tamaño C [ mm ] 56.00
G [ qty. ] 6
O.D.1 [ mm ] 50.00
Polea AFP
D.1 [ mm ] 9.50
D.2 [ mm ] 9.50
D.3 [ mm ] 9.50
D.4 [ mm ] 9.50
E.1 [ mm ] 70.00
E.2 [ mm ] 70.00
L.1 [ mm ] 193.00
Conector PL_2306
COM ID 49

Medidas y denominaciones según AS-PL (cuenta cliente). Las letras corresponden al plano acotado que aparece entre las fotografías.

Compatibilidad

Aplicaciones

99 vehículos

MERCEDES-BENZ

  • GLK-CLASS (X204) 200 CDI (204.901) OM651.913 2010–2015
  • GLK-CLASS (X204) 200 CDI (204.901) OM651.916 2010–2015
  • GLK-CLASS (X204) 200 CDI (204.901) OM651.916 2013–2015
  • GLK-CLASS (X204) 220 CDI (204.902) OM651.916 2008–2015
  • GLK-CLASS (X204) 220 CDI 4-matic (204.984, 204.997) OM651.912 2008–2015
  • SLK (R172) 200 (172.448) M271.860 desde 2011
  • SLK (R172) 200 (172.448) M271.861 desde 2011
  • SLK (R172) 250 (172.447) M271.861 desde 2011
  • SLK (R172) 250 (172.447) M271.860 desde 2011
  • SPRINTER 3-t Bus (B906) 210 CDI (906.711, 906.713) OM651.956 2009–2016
  • SPRINTER 3-t Bus (B906) 210 CDI (906.711, 906.713) OM651.955 2009–2016
  • SPRINTER 3-t Bus (B906) 211 CDI (906.711, 906.713) OM646.985 2006–2009
  • SPRINTER 3-t Bus (B906) 211 CDI (906.711, 906.713) OM651.955 2016–2018
  • SPRINTER 3-t Bus (B906) 211 CDI (906.711, 906.713) OM651.956 2016–2018
  • SPRINTER 3-t Bus (B906) 213 CDI (906.711, 906.713) OM651.957 2006–2016
  • SPRINTER 3-t Bus (B906) 213 CDI (906.711, 906.713) OM651.955 2006–2016
  • SPRINTER 3-t Bus (B906) 213 CDI (906.711, 906.713) OM651.956 2006–2016
  • SPRINTER 3-t Bus (B906) 214 CDI (906.711, 906.713) OM651.956 2016–2018
  • SPRINTER 3-t Bus (B906) 214 CDI (906.711, 906.713) OM651.955 2016–2018
  • SPRINTER 3-t Bus (B906) 215 CDI (906.711, 906.713) OM646.989 2006–2009
  • SPRINTER 3-t Bus (B906) 215 CDI (906.711, 906.713) OM646.986 2006–2009
  • SPRINTER 3-t Bus (B906) 215 CDI (906.711, 906.713) OM646.990 2006–2009
  • SPRINTER 3-t Bus (B906) 216 CDI (906.711, 906.713) OM651.957 2009–2018
  • SPRINTER 3-t Bus (B906) 216 CDI (906.711, 906.713) OM651.956 2009–2018
  • SPRINTER 3-t Bus (B906) 216 CDI (906.711, 906.713) OM651.955 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 209 CDI (906.111, 906.113, 906.211, 906.213) OM646.984 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 210 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 210 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 211 CDI (906.111, 906.113, 906.211, 906.213) OM646.985 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 211 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2016–2018
  • SPRINTER 3-t Platform/Chassis (B906) 211 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2016–2018
  • SPRINTER 3-t Platform/Chassis (B906) 213 CDI (906.111, 906.113, 906.211, 906.213) OM646.986 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 213 CDI (906.111, 906.113, 906.211, 906.213) OM651.957 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 213 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 213 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2009–2016
  • SPRINTER 3-t Platform/Chassis (B906) 214 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2016–2018
  • SPRINTER 3-t Platform/Chassis (B906) 214 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2016–2018
  • SPRINTER 3-t Platform/Chassis (B906) 215 CDI (906.111, 906.113, 906.211, 906.213) OM646.986 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 215 CDI (906.111, 906.113, 906.211, 906.213) OM646.989 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 215 CDI (906.111, 906.113, 906.211, 906.213) OM646.990 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 216 (906.113, 906.213) M271.951 2008–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 CDI (906.111, 906.113, 906.211, 906.213) OM651.956 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 CDI (906.111, 906.113, 906.211, 906.213) OM651.957 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 216 CDI (906.111, 906.113, 906.211, 906.213) OM651.955 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 218 CDI (906.111, 906.113, 906.211, 906.213) OM642.896 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 218 CDI (906.111, 906.113, 906.211, 906.213) OM642.993 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 218 CDI (906.111, 906.113, 906.211, 906.213) OM642.992 2006–2009
  • SPRINTER 3-t Platform/Chassis (B906) 219 CDI / BlueTEC (906.111, 906.113, 906.211, 906.213) OM642.992 2009–2018
  • SPRINTER 3-t Platform/Chassis (B906) 219 CDI / BlueTEC (906.111, 906.113, 906.211, 906.213) OM642.896 2009–2018
  • SPRINTER 3-t Tourer Bus (B907) 211 CDI (907.721, 907.723) OM651.958 2018–2021
  • SPRINTER 3-t Van (B906) 209 CDI (906.611, 906.613) OM646.984 2006–2009
  • SPRINTER 3-t Van (B906) 210 CDI (906.611, 906.613) OM651.955 2009–2016
  • SPRINTER 3-t Van (B906) 210 CDI (906.611, 906.613) OM651.956 2009–2016
  • SPRINTER 3-t Van (B906) 211 CDI (906.611, 906.613) OM646.985 2006–2009
  • SPRINTER 3-t Van (B906) 211 CDI (906.611, 906.613) OM651.956 2016–2018
  • SPRINTER 3-t Van (B906) 211 CDI (906.611, 906.613) OM651.955 2016–2018
  • SPRINTER 3-t Van (B906) 213 CDI (906.611, 906.613) OM646.986 2006–2009
  • SPRINTER 3-t Van (B906) 213 CDI (906.611, 906.613) OM651.955 2006–2016
  • SPRINTER 3-t Van (B906) 213 CDI (906.611, 906.613) OM651.956 2006–2016
  • SPRINTER 3-t Van (B906) 213 CDI (906.611, 906.613) OM651.957 2006–2016

Y 39 aplicaciones más. Ingresa como cliente para ver la lista completa.

Referencia cruzada

Números originales y equivalencias

69 códigos

Los OEM son los números originales del fabricante del vehículo o del equipo. Las otras referencias son códigos de distintas marcas para la misma pieza.

Otras referencias técnicas
MarcaCódigos
3EFFE
  • ALTL379
ANDEL
  • ANM32908X
AS-PL
  • A3277
  • UD12151A
AUTOELECTRO
  • AEK3214
CARGO
  • 115413
  • F032115413
CASCO
  • CAL15352
  • CAL15352AS
  • CAL15352ES
  • CAL15352GS
  • CAL15352OS
  • CAL15352RS
CEVAM
  • 4820
DELCO
  • DRA0688
DIXIE
  • A9539
EAI
  • 57378
ELECTROLOG
  • ALT00230
ELSTOCK
  • 285826
ELTA AUTOMOTIVE
  • EZ4313
ERA
  • 210900
HC PARTS
  • CA2053IR
HELLA
  • 8EL011712421
  • 8EL738213251
HERTH+BUSS
  • 32083600
KUHNER
  • 553359RI
  • 553359RIV
LAUBER
  • 112053
LOGISTIK
  • 442410
LUCAS
  • LRA03214
  • LRA3214
MERCEDES
  • 6461540802
  • 64615408020080
  • 646154080280
  • A6461540802
  • A64615408020080
  • A646154080280
PSH
  • 555587220
  • 555587220004
  • 555587220346
  • 555590180000
  • 555590180004
  • 555590180008
  • 555590180280
  • 555590180340
  • 555590180500
  • 555590180505
  • A133574
  • A133577
  • A146860
  • A146864
  • A149976
REAL
  • 20179253OE
ROLLCO
  • ALT2294CP
SANDO
  • 2015352
SEG AUTOMOTIVE
  • T000A10006
SIDAT
  • A12VA0197A2
  • A12VA0197AS
SOVEREIGN
  • SB354
STARDAX
  • STX101671
VALEO
  • 2543444
  • 2543444A
  • 439597
  • 440178
  • 444711
  • TG23C017
WAI / TRANSPO
  • 20091N
WOODAUTO
  • ALT14491
  • VALTG23C017
