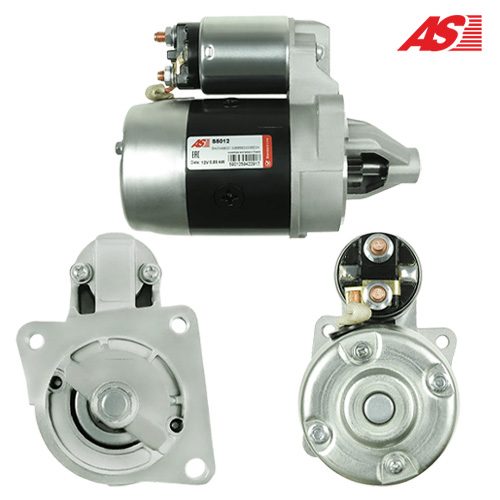

Código S5012 Motor de partida · AS PARTS · 12 V

Name: Motor de partida AS PARTS S5012 12 V
Brand: AS PARTS
SKU: S5012

AS PARTS

Repuesto de nuestra línea de importación directa, disponible para consulta comercial y despacho nacional.

Consultar disponibilidad

Consultar disponibilidad Ingresar como cliente

El precio y el stock al día están disponibles para clientes con cuenta.

Ficha técnica

Según AS-PL (cuenta cliente)

Código	S5012
Marca	AS PARTS
Unidad de venta	UN

Motores de arranque

Tensión [ V ]	12
Potencia [ kW ]	0.85
Giro del arrancador	CW
Tamaño A [ mm ]	74.00
Tamaño B [ mm ]	16.00
Número de dientes [ qty. ]	8
Número de dientes (encaja en) [ qty. ]	8
Número de orificios en el cabezal [ qty. ]	3
Número de orificios roscados [ qty. ]	2
L.1 [ mm ]	190.00
O.1 [ mm ]	77.50
O.2 [ mm ]	110.50
O.3 [ mm ]	77.00
C.1 [ mm ]	M10x1.75
C.2 [ mm ]	11.00
C.3 [ mm ]	M10x1.75

Medidas y denominaciones según AS-PL (cuenta cliente). Las letras corresponden al plano acotado que aparece entre las fotografías.

Compatibilidad

Aplicaciones

98 vehículos

KIA

AVELLA (KBA1) 1.3 B3 1995–2001
AVELLA Hatchback (KBA1) 1.5 B535 1997–2001
CARENS I MPV (FC, FJ) 1.6 GA6D 2002–2006
CARENS I MPV (FC, FJ) 1.8 i TB 2000–2006
CARENS I MPV (FC, FJ) 1.8 i T8 2000–2002
CARENS I MPV (FC, FJ) 1.8 i 16V T8D 2000–2002
CARENS II MPV (FJ) 1.8 TB 2002–2006
CERATO Saloon (FB) 1.8 T8 2001–2004
CLARUS (K9A) 1.8 i 16V T8 1996–2001
CLARUS (K9A) 2.0 i 16V FE(16V) 1996–2001
CLARUS Estate (GC) 1.8 i 16V T8 1998–2000
CLARUS Estate (GC) 2.0 i 16V FE(16V) 1998–2000
PRIDE (DA) 1.3 B3(8V) 1990–2001
PRIDE (DA) 1.3 B3(8V) 1990–2000
PRIDE (DA) 1.3 B3A5 1994–1997
PRIDE (DA) 1.3 B3(8V) 1996–2001
PRIDE Estate 1.3 B3(8V) 1999–2001
PRIDE Van (DA) 1.3 B3A6 1992–1996
PRIDE Van (DA) 1.3 B3A5 1996–1999
RETONA Closed Off-Road Vehicle (FK) 2.0 16V FE(16V) 2000–2001
RETONA Closed Off-Road Vehicle (FK) 2.0 TD RF 1999–2001
RIO I Hatchback (DC) 1.3 A3E 2000–2005
RIO I Hatchback (DC) 1.5 16V A5D 2000–2005
RIO I Hatchback (DC) 1.5 16V A5D 2002–2005
RIO I Saloon (DC_) 1.3 A3E 2000–2005
RIO I Saloon (DC_) 1.5 16V A5D 2000–2005
SEPHIA (FA) 1.5 i B5 1996–1997
SEPHIA (FA) 1.6 i B6 1995–1997
SEPHIA Saloon (FA) 1.5 i B5 1996–1997
SEPHIA Saloon (FA) 1.6 i B6 1993–1997
SHUMA I (FB) 1.5 i 16V (AFB242) BFD 1997–2001
SHUMA I (FB) 1.8 i 16V TED 1997–2001
SHUMA I (FB) 1.8 i 16V T8 1997–2001
SHUMA II (FB) 1.6 GA6D 2001–2004
SHUMA II (FB) 1.8 T8 2003–2004
SHUMA II Saloon (FB) 1.6 GA6D 2001–2004
SHUMA Saloon (FB) 1.5 B5 1996–1998
SHUMA Saloon (FB) 1.5 i 16V (AFB222) BFD 1997–2001
SPORTAGE SUV (K00) 2.0 FE(16V) 2000–2003
SPORTAGE SUV (K00) 2.0 4WD FE(16V) 2000–2003
SPORTAGE SUV (K00) 2.0 i 16V FE(16V) 1999–2003
SPORTAGE SUV (K00) 2.0 i 16V 4WD FE(16V) 1994–2003
SPORTAGE SUV (K00) 2.0 i 4WD FE(8V) 1994–1999
SPORTAGE VAN 2.0 4WD FE(8V) 1995–1998

MAZDA

121 II (DB) 1.3 16V (DB3PA) B3C9 1990–1996
121 II (DB) 1.3 i 16V (DB3PA) B3C9 1990–1996
323 C IV (BG) 1.3 (BG3S) B383 1989–1994
323 C IV (BG) 1.3 16V (BG3S) B385 1989–1994
323 C IV (BG) 1.3 16V (BG3S) B384 1989–1994
323 C V (BA) 1.3 16V B3P7 1994–1998
323 F VI Hatchback (BJ) 1.3 16V (BJ3P, BJ14) B33G 1998–2001
323 F VI Hatchback (BJ) 1.4 (BJ3P) 2001–2004
323 II Hatchback (BD) 1.1 (BD101) E1 1980–1985
323 II Hatchback (BD) 1.3 (BD103) E3 1980–1989
323 II Hatchback (BD) 1.3 (BD103) E3 1980–1985
323 II Hatchback (BD) 1.5 (BD105) E5 1980–1983
323 II Hatchback (BD) 1.5 (BD105) E5 1981–1985
323 II Hatchback (BD) 1.5 (BD105) E5 1982–1985
323 II Saloon (BD) 1.1 (BD101) E1 1980–1985
323 II Saloon (BD) 1.3 (BD103) E3 1980–1989

Y 38 aplicaciones más. Ingresa como cliente para ver la lista completa.

Referencia cruzada

Números originales y equivalencias

359 códigos

Los OEM son los números originales del fabricante del vehículo o del equipo. Las otras referencias son códigos de distintas marcas para la misma pieza.

Otras referencias técnicas
Marca	Códigos
3EFFE	PRSS188 STRS188 STRW053
AINDE	CGB23501 CGB24991
ANDEL	ANM17211X
AS-PL	S5012 S5034 UD02054S
ASHIKA	003D212 003M162 003M179 003M193
AUTOELECTRO	AES2112 AES5157 AES6127 AES6188 AEY1723
BOSCH	0986014991
CARGO	110808 F032110808
CASCO	CST35129 CST35129AS CST35129ES CST35129GS CST35129OS CST35129RS CST35133 CST35133AS CST35133ES CST35133GS CST35133OS CST35133RS CST35223 CST35223AS CST35223ES CST35223GS CST35223OS CST35223RS
CEVAM	9658
DELCO	111089 112816 DRS3501 DRS3511 DRS4991
EAI	11704
ELECTROLOG	STR5082
ELSTOCK	250328 251114 252009 252057 253279 260395 26395
ERA	220118 220387 220616
FORD	B50518400
FRIESEN	8052309
HC PARTS	JS1000 JS640
HELLA	8EA011610581 8EA011610851 8EA012526551 8EA726550001
HYUNDAI / KIA	0B6S818400 0K24018400 0K24118400 0K24118400A 0K24118400C 0K32618400 0K90018400 0K90018400A 0K90018400B 0K90018400C 0K95418400 361002Y100 B30318400 B35918400 B67618400A B6S818400 FE5018400D KK38818400 M35216 MB30318400A MB35918400A OB6S818400 OK24018400 OK24118400 OK24118400A OK24118400B OK24118400C OK90018400 OK90018400B OK90018400C OK95418400
JAPANPARTS	MTD212 MTM162 MTM179 MTM193
JAPKO	3D212 3M162 3M179 3M193
KUHNER	201000 201146 20325 20640
LAUBER	220640 220640M
LOGISTIK	335490
LUCAS	LRS00557 LRS00627 LRS00688 LRS01150 LRS01723 LRS02055 LRS1150 LRS1723 LRS2055 LRS557 LRS627 LRS688
MAZDA	850518400 AA30G18400 B30318400 B30318400A B31518400 B31518400A B31518400B B31518400E B50518400 B505184009R B59318400 B593184009R B61P18400 B61P18400A B63018400 B63018400A B65818400 B65818400R B67618400 B67618400A B67618400AT B67618400B B6DK18400 B6S818400 B6S818400A E30118400 E30118400A E30118400B E35618400 E35618400A E35618400B E35618400L E35648400B E35718400 E35718400A E35918400B9R F21018400 F21018400A F24018400 F24018400A F24018400B F24018400C F60118400 F601184009R F60118400A F60118400B F80218400 F80218400A F80218400AT F80218400B F80218400L F80618400 F85018400 F85018400A F85018400B F85018400C F85018400E F8B118400 F8B118400A F8B118400AT F8B118400B F8B118400C FE0518400 FE0518400A FE0518400B FE0518400C FE1J18400 FE1J18400A FE5018400 FE5018400A FE5018400B FE5018400C FE5018400D FE5018400E FE5A18400 FE5A18400A FE7918400 KB30318400 KB30818400 PE24731100
MEAT & DORIA	5035234
MITSUBISHI	M003T21874 M003T24481 M003T24482 M003T24482A M003T24482H M003T24482HC M003T24482J M003T24482K M003T24482L M003T24483 M003T24485 M003T24486 M003T24486A M003T24486H M003T24487 M003T24488 M003T30281 M003T30282 M003T30285 M003T30286 M003T30881 M003T30882 M003T33281 M003T33282 M003T33283 M003T33581 M003T33582 M003T33582A M003T33583 M003T33585 M003T33586 M003T33586A M003T33586D M003T33587 M003T33588 M003T34082 M003T38881 M003T38881A M003T38881B M003T38881C M003T38882 M003T38882A M003T38882B M003T38882C M003T38883 M003T38884 M003T38885 M003T39385 M003T39481 M003T39981 M003T43581 M003T49381 M003T49481 M003T49581 M003T49585 M003T49781 M003Y24482 M3T21874 M3T24481 M3T24482 M3T24482A M3T24482H M3T24482HC M3T24482J M3T24482K M3T24482L M3T24483 M3T24485 M3T24486 M3T24486A M3T24486H M3T24487 M3T24488 M3T30281 M3T30282 M3T30285 M3T30286 M3T30881 M3T30882 M3T33281 M3T33282 M3T33283 M3T33581 M3T33582 M3T33582A M3T33583 M3T33585 M3T33586 M3T33586A M3T33586D M3T33587 M3T33588 M3T34082 M3T38862 M3T38881 M3T38881A M3T38881B M3T38881C M3T38882 M3T38882A M3T38882B M3T38882C M3T38883 M3T38884 M3T38885 M3T39385 M3T39481 M3T39981 M3T43581 M3T49381 M3T49481 M3T49581 M3T49585 M3T49781 M3Y24482 MC109015
POWERMAX	8212160 88212160 88213322
PRESTOLITE	66925114 66925181
REAL	20437921BN
SANDO	6035129 6035133 6035223
SIDAT	S12MH0849 S12MH0849A2
SIOM	MAV122620 MAV341120 MAV371280 MAV371290 MAV371330 MAV6060 MAV6070
SOVEREIGN	SS229 SS352 SS353
STARDAX	STX200131 STX200131R STX200199 STX200199R STX200567 STX200567R STX200607 STX200607R
VALEO	455606 M000A0240Z MC109028 MC109036 VS305
WAI / TRANSPO	16922N 16922R 17181N 17704N
WOODAUTO	STR71005
