Catálogo Relmotor
Código S3061

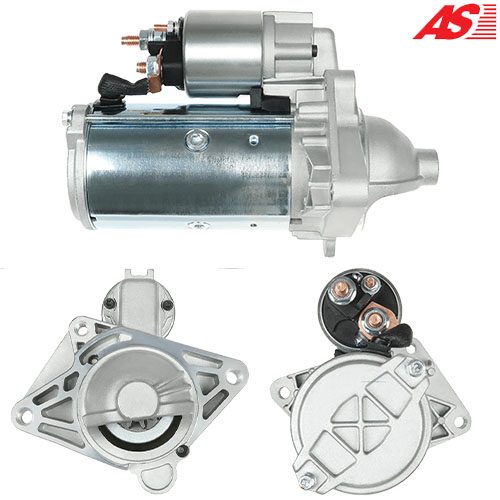

MOTOR DE PARTIDA · AS PARTS
AS PARTS
Repuesto de nuestra línea de importación directa, disponible para consulta comercial y despacho nacional.
Consultar disponibilidad
Los precios y las referencias cruzadas están disponibles para clientes con cuenta.
Ficha técnica
| Código | S3061 |
|---|---|
| Marca | AS PARTS |
| Unidad de venta | UN |
Motores de arranque
| Tensión [ V ] | 12 |
|---|---|
| Potencia [ kW ] | 2.20 |
| Giro del arrancador | CW |
| Tamaño A [ mm ] | 76.50 |
| Tamaño B [ mm ] | 13.50 |
| Número de dientes [ qty. ] | 10 |
| Número de dientes (encaja en) [ qty. ] | 10, 11 |
| Número de orificios en el cabezal [ qty. ] | 3 |
| Número de orificios roscados [ qty. ] | 3 |
| L.1 [ mm ] | 218.00 |
| O.1 [ mm ] | 134.00 |
| O.2 [ mm ] | 66.00 |
| O.3 [ mm ] | 102.00 |
| C.1 [ mm ] | M10x1.5 |
| C.2 [ mm ] | M10x1.5 |
| C.3 [ mm ] | M8x1.25 |
Medidas y denominaciones según AS-PL (cuenta cliente). Las letras corresponden al plano acotado que aparece entre las fotografías.
Compatibilidad
100 vehículos
Aplicaciones
MERCEDES-BENZ
- X-CLASS (470) X 220 d (470.210) OM699.300 2017–2020
- X-CLASS (470) X 220 d (470.210) OM699.302 2017–2020
- X-CLASS (470) X 220 d (470.210) OM699.304 2017–2020
- X-CLASS (470) X 220 d 4-matic (470.211) OM699.300 2017–2020
- X-CLASS (470) X 220 d 4-matic (470.211) OM699.302 2017–2020
- X-CLASS (470) X 220 d 4-matic (470.211) OM699.304 2017–2020
- X-CLASS (470) X 250 d (470.230) OM699.301 2017–2020
- X-CLASS (470) X 250 d (470.230) OM699.303 2017–2020
- X-CLASS (470) X 250 d (470.230) OM699.305 2017–2020
- X-CLASS (470) X 250 d 4-matic (470.231) OM699.305 2017–2020
- X-CLASS (470) X 250 d 4-matic (470.231) OM699.303 2017–2020
- X-CLASS (470) X 250 d 4-matic (470.231) OM699.301 2017–2020
- X-CLASS Platform/Chassis (470) X 220 d (470.210) OM699.300 desde 2017
- X-CLASS Platform/Chassis (470) X 220 d (470.210) OM699.304 desde 2017
- X-CLASS Platform/Chassis (470) X 220 d (470.210) OM699.302 desde 2017
- X-CLASS Platform/Chassis (470) X 250 d 4-matic (470.231) OM699.303 desde 2017
- X-CLASS Platform/Chassis (470) X 250 d 4-matic (470.231) OM699.305 desde 2017
- X-CLASS Platform/Chassis (470) X 250 d 4-matic (470.231) OM699.301 desde 2017
NISSAN
- INTERSTAR Van (X62B) dCi 110 M9T726 desde 2021
- NAVARA NP300 Pickup (D23, D23T) 2.3 dCi YS23DDTT desde 2015
- NAVARA NP300 Pickup (D23, D23T) 2.3 dCi (D231) YS23DDT desde 2015
- NAVARA NP300 Pickup (D23, D23T) 2.3 dCi 4x4 (D231, D23T) YS23DDTT desde 2015
- NAVARA NP300 Pickup (D23, D23T) 2.3 dCi 4x4 (D231) YS23DDT desde 2015
- NAVARA NP300 Platform/Chassis (D23) 2.3 dCi 4x4 YS23DDT desde 2015
- NV400 Bus (X62, X62B) dCi 100 M9T870 2011–2016
- NV400 Bus (X62, X62B) dCi 100 M9T676 2011–2016
- NV400 Bus (X62, X62B) dCi 100 M9T672 2011–2016
- NV400 Bus (X62, X62B) dCi 100 M9T670 2011–2016
- NV400 Bus (X62, X62B) dCi 110 M9T704 desde 2014
- NV400 Bus (X62, X62B) dCi 110 M9T870 desde 2014
- NV400 Bus (X62, X62B) dCi 125 M9T870 2011–2016
- NV400 Bus (X62, X62B) dCi 125 M9T680 2011–2016
- NV400 Bus (X62, X62B) dCi 125 M9T676 2011–2016
- NV400 Bus (X62, X62B) dCi 125 M9T672 2011–2016
- NV400 Bus (X62, X62B) dCi 125 M9T670 2011–2016
- NV400 Bus (X62, X62B) dCi 125 M9T872 2011–2016
- NV400 Bus (X62, X62B) dCi 125 M9T880 2011–2016
- NV400 Bus (X62, X62B) dCi 125 M9T882 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 100 M9T870 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 100 M9T676 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 100 M9T672 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 100 M9T670 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 110 M9T704 desde 2014
- NV400 Platform/Chassis (X62, X62B) dCi 110 M9T870 desde 2014
- NV400 Platform/Chassis (X62, X62B) dCi 125 M9T680 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 M9T882 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 M9T670 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 M9T880 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 M9T872 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 M9T870 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 M9T672 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 M9T676 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 RWD M9T686 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 RWD M9T690 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 RWD M9T692 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 RWD M9T696 2011–2016
- NV400 Platform/Chassis (X62, X62B) dCi 125 RWD M9T698 2011–2016
- NV400 Van (X62, X62B) dCi 100 M9T870 2011–2016
- NV400 Van (X62, X62B) dCi 100 M9T676 2011–2016
- NV400 Van (X62, X62B) dCi 100 M9T672 2011–2016
Y 40 aplicaciones más. Ingresa como cliente para ver la lista completa.
